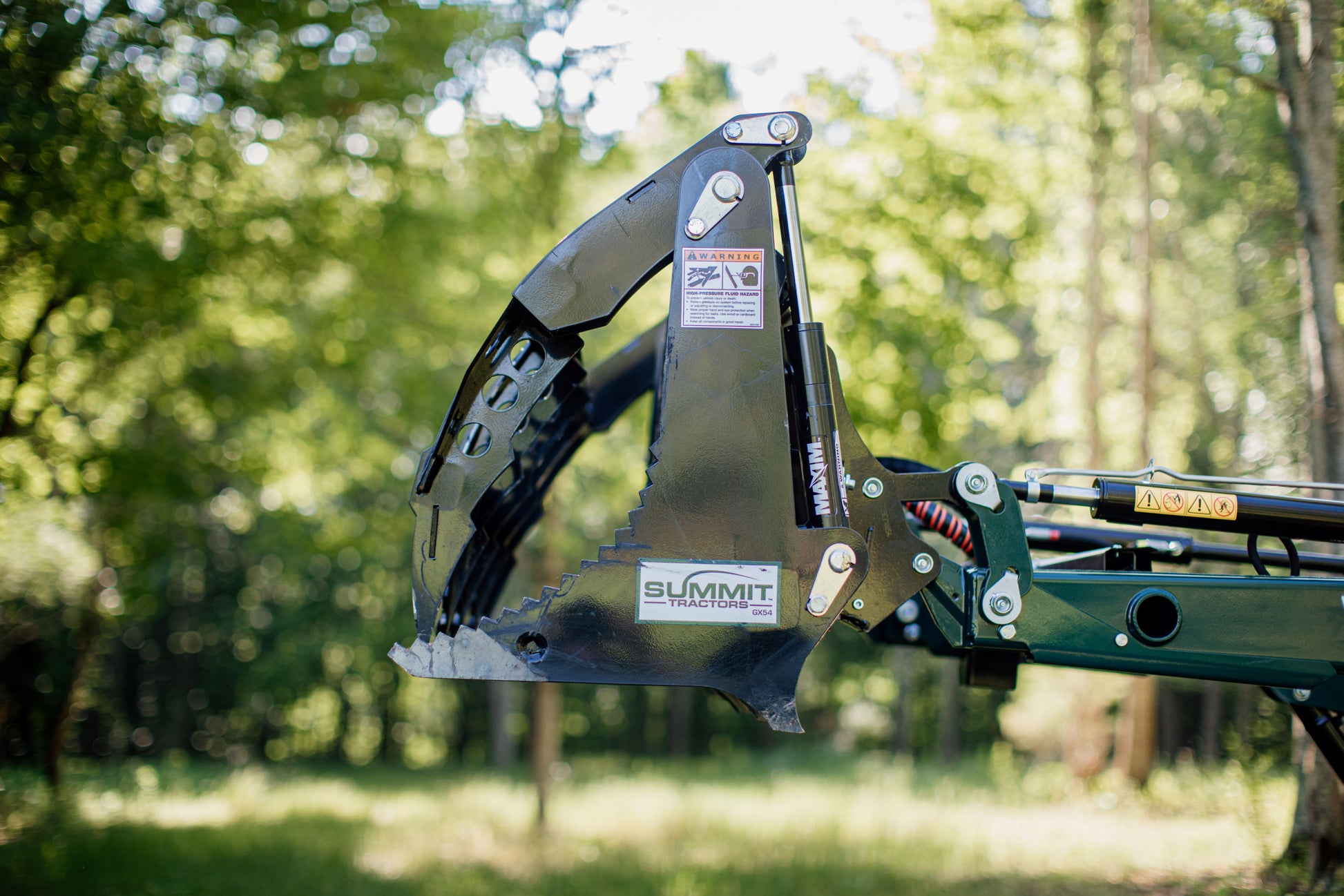

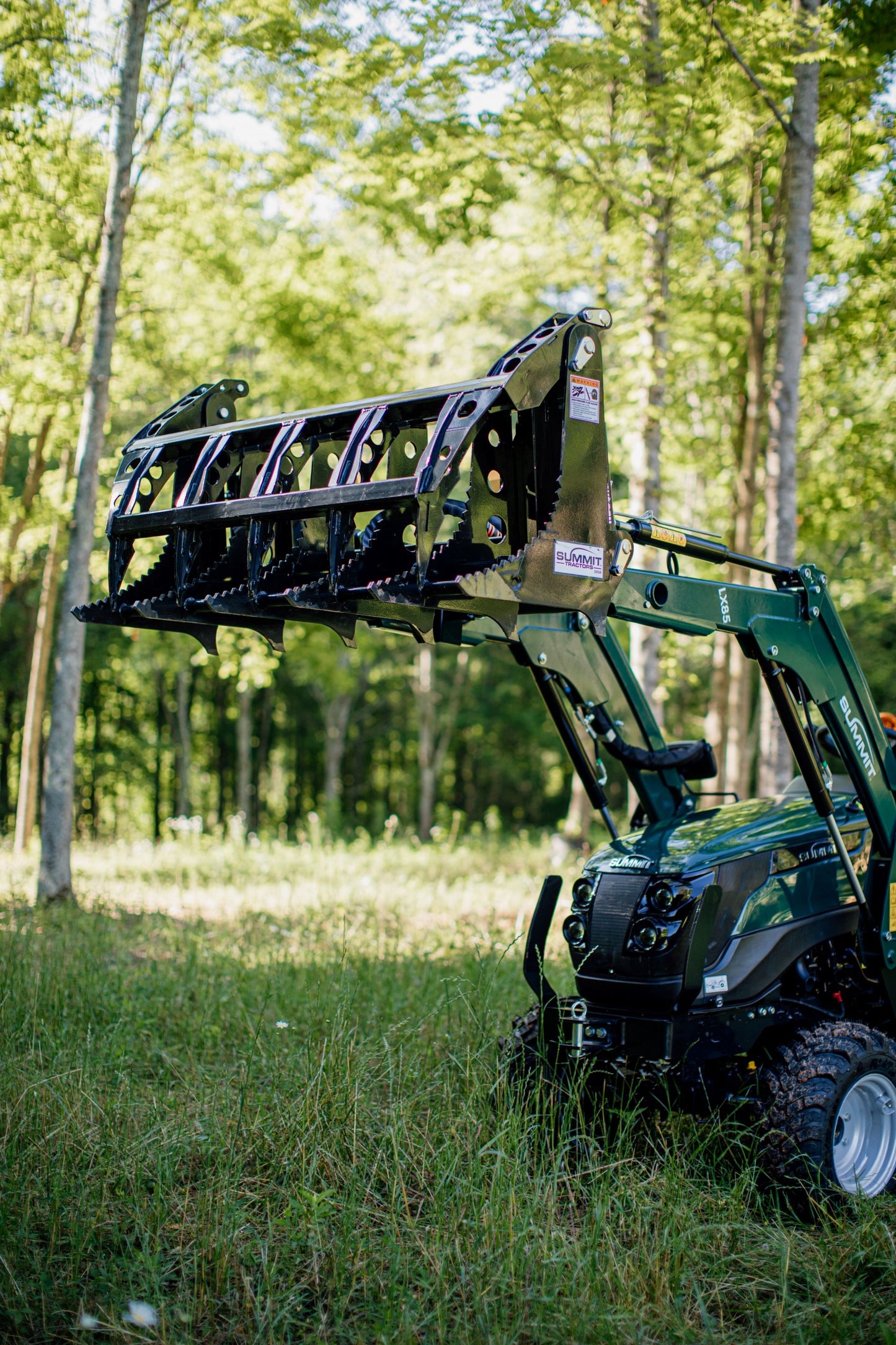

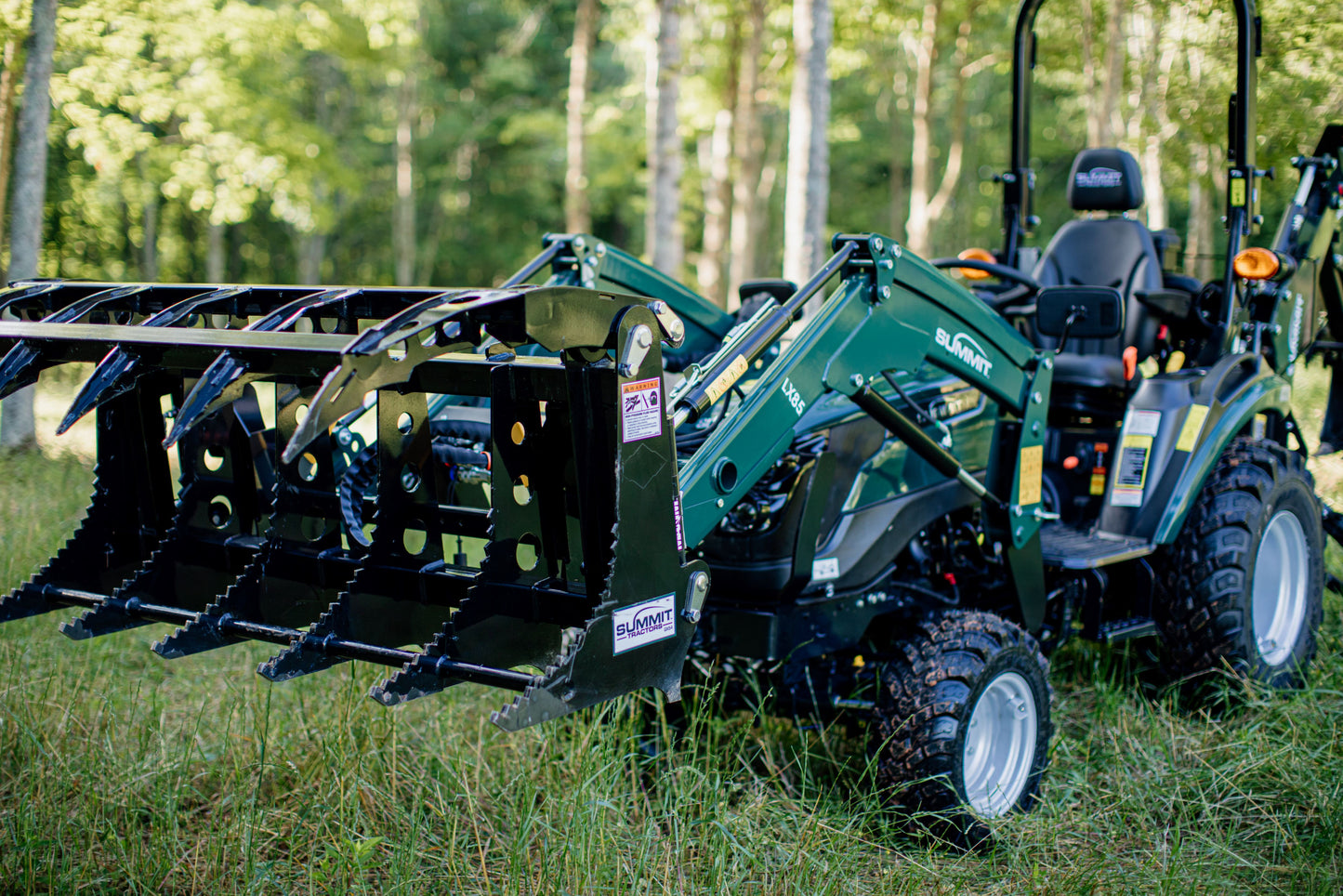

GX SERIES GRAPPLES JDQA – For John Deere Quick Attach Equipped Loaders

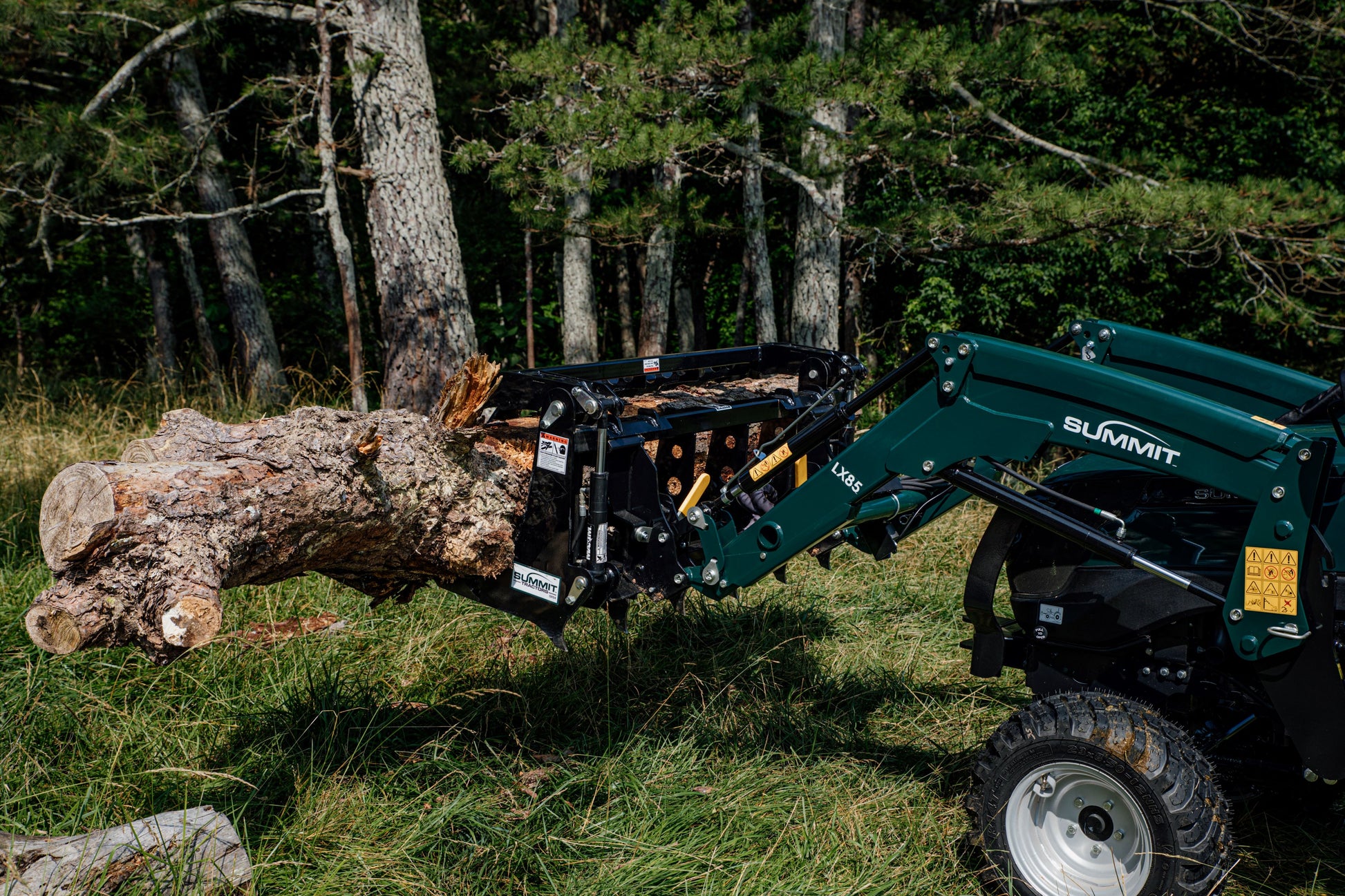

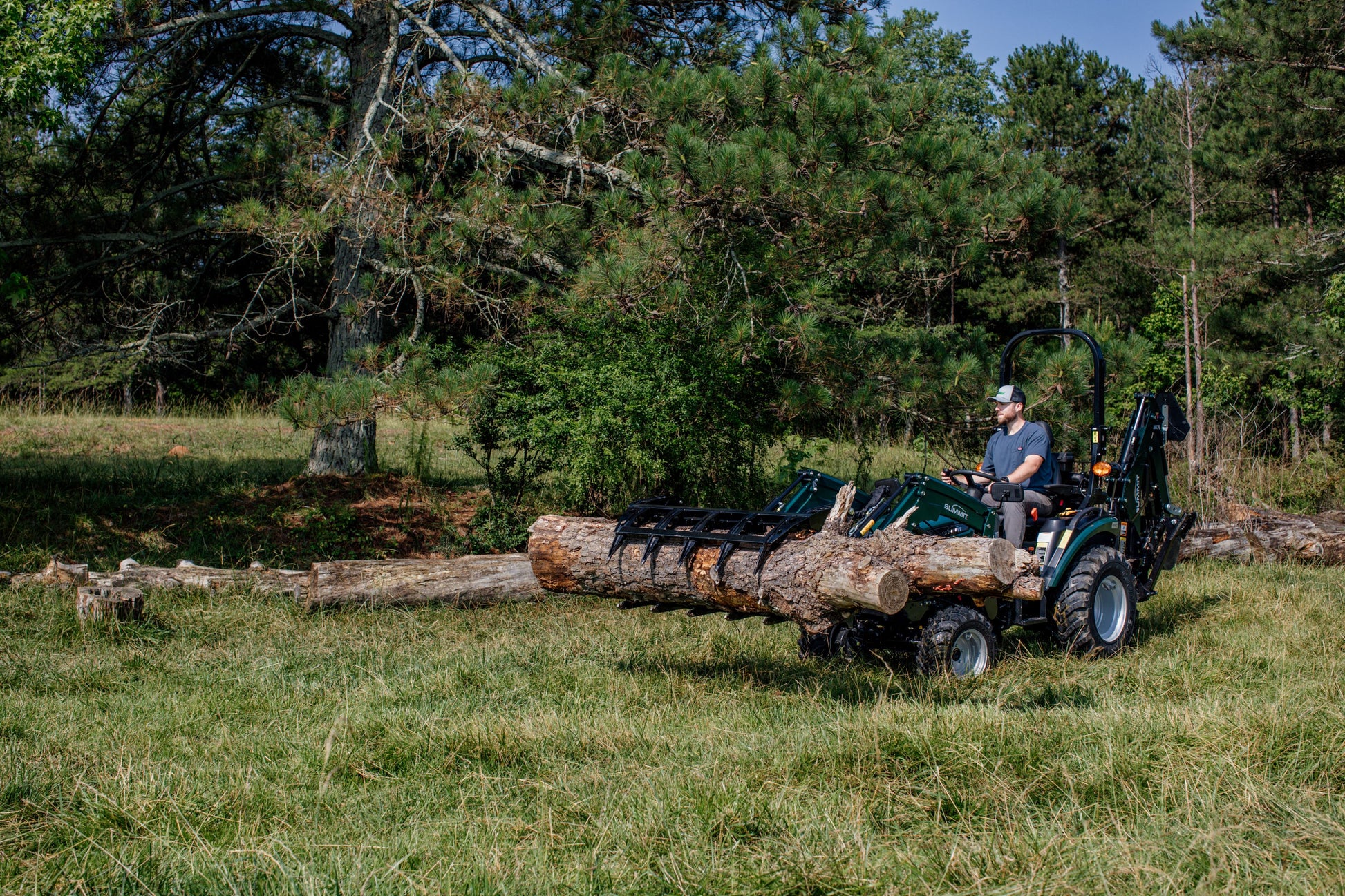

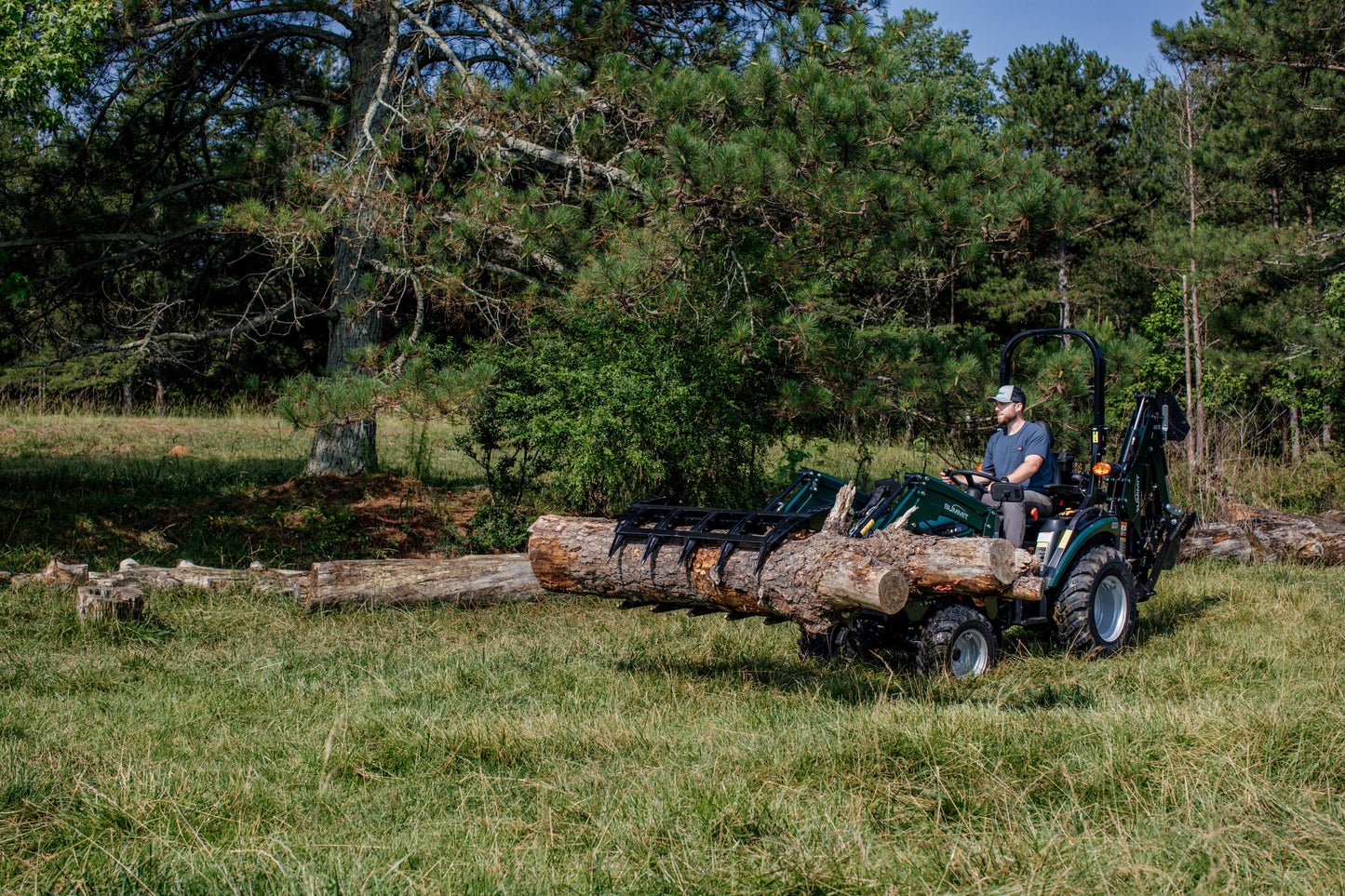

The Summit GX series grapples are perfect for picking up and moving a wide range of material from Point A to Point B; from heavy brush, logs, rocks & boulders to a wide range of organic and man-made objects. There is virtually no limit to the kind of work they do and no tractor is complete without one. The Summit GX Series Grapples are made in the USA and feature dual hydraulic cylinders, protected sleeve hydraulic hoses, gusseted teeth, laminated and serrated tines, powder coat finish and greaseable pins. Available for both Skid Steer Quick Attach (SSQA) and John Deere Quick Attach (JDQA) equipped front-end loaders

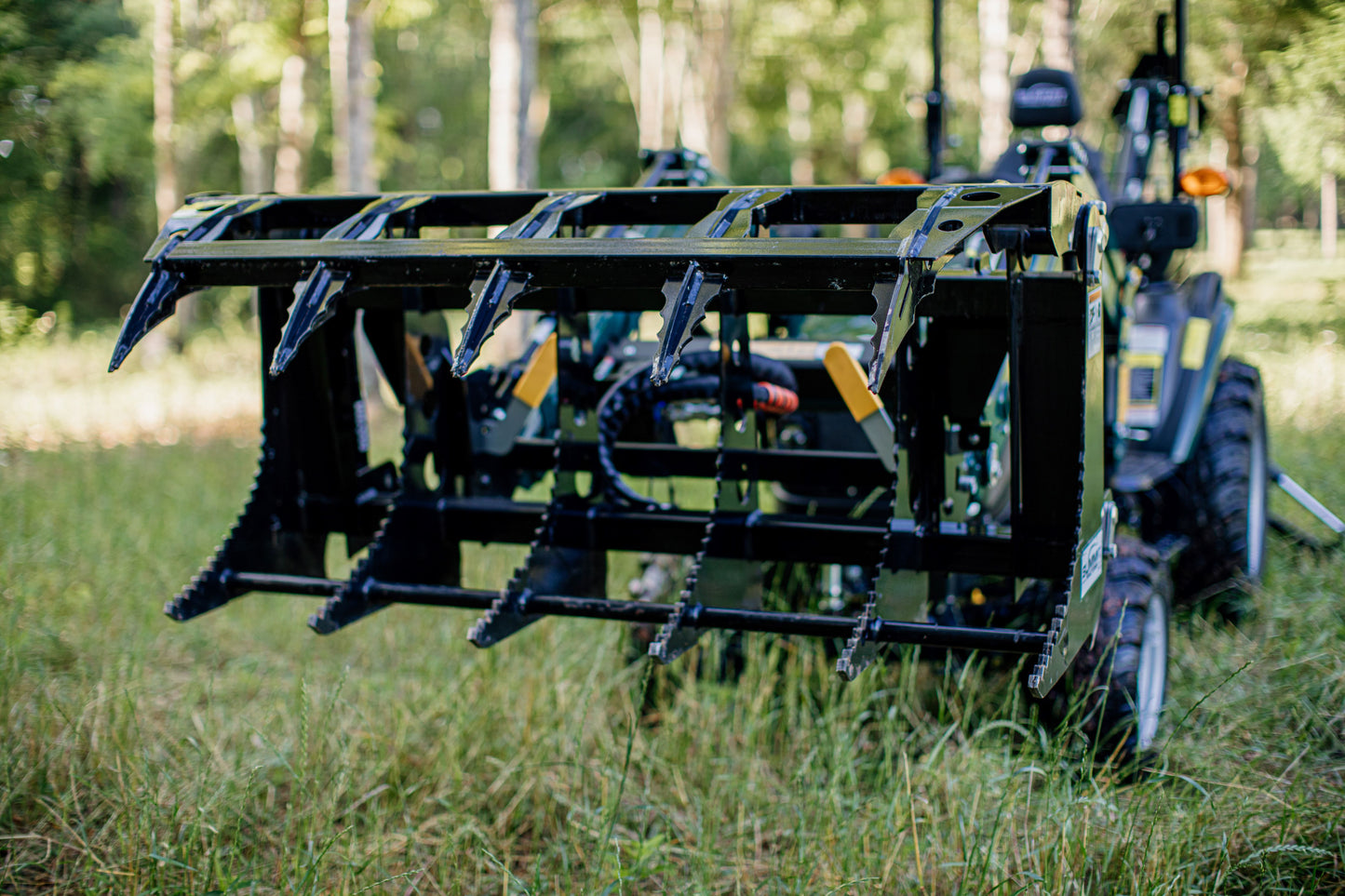

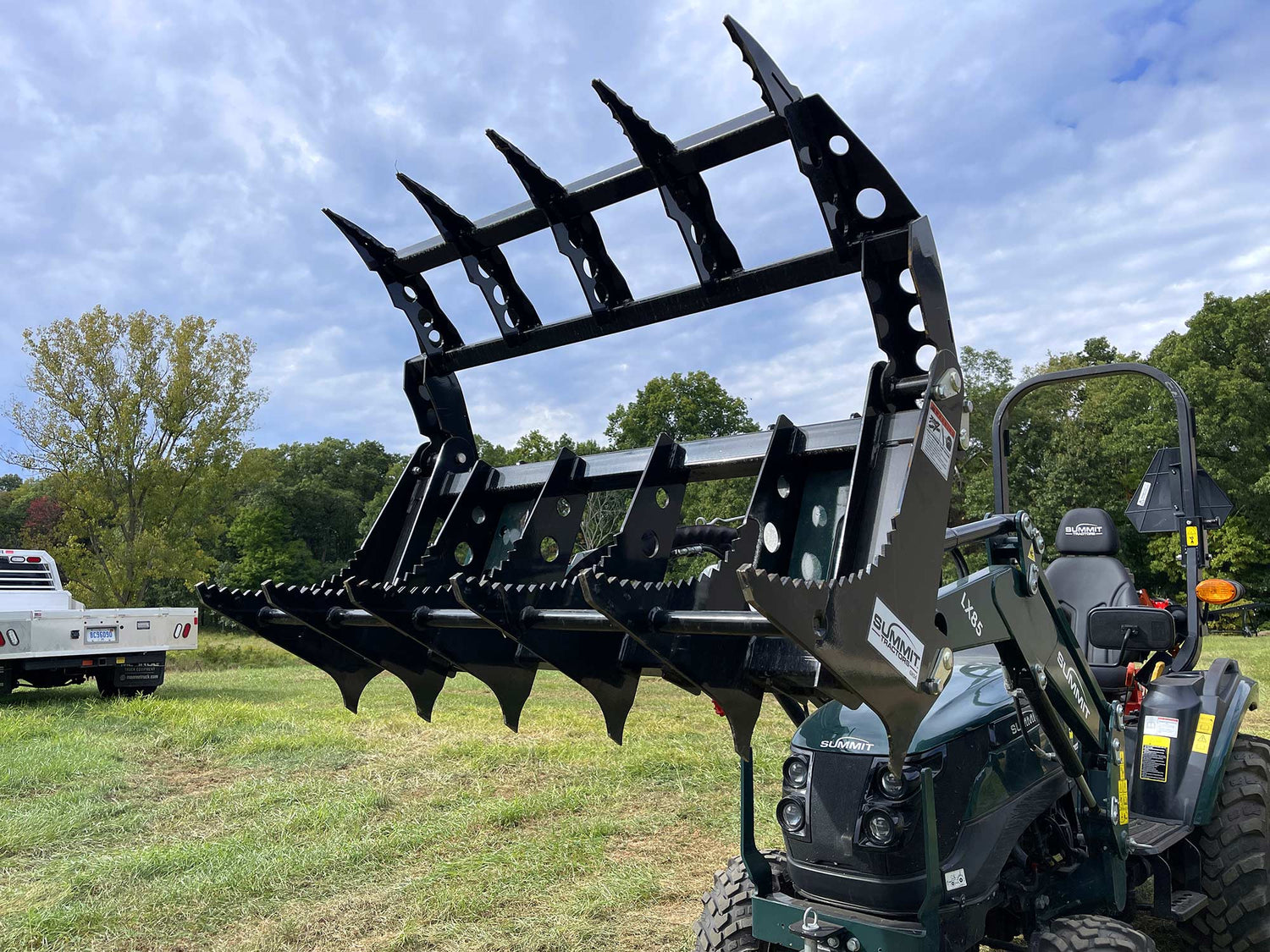

- Extra wide clamshell design opens to 35.26” for maximum material grabbing range

- Available for Skid Steer Quick Attach (SSQA) or John Deere Quick Attach (JDQA) equipped front-end loaders

- Laminated tines for a total of ½” material on the tips for strength

- Shoe style footing to stand on its one when not in use

- Greaseable pins

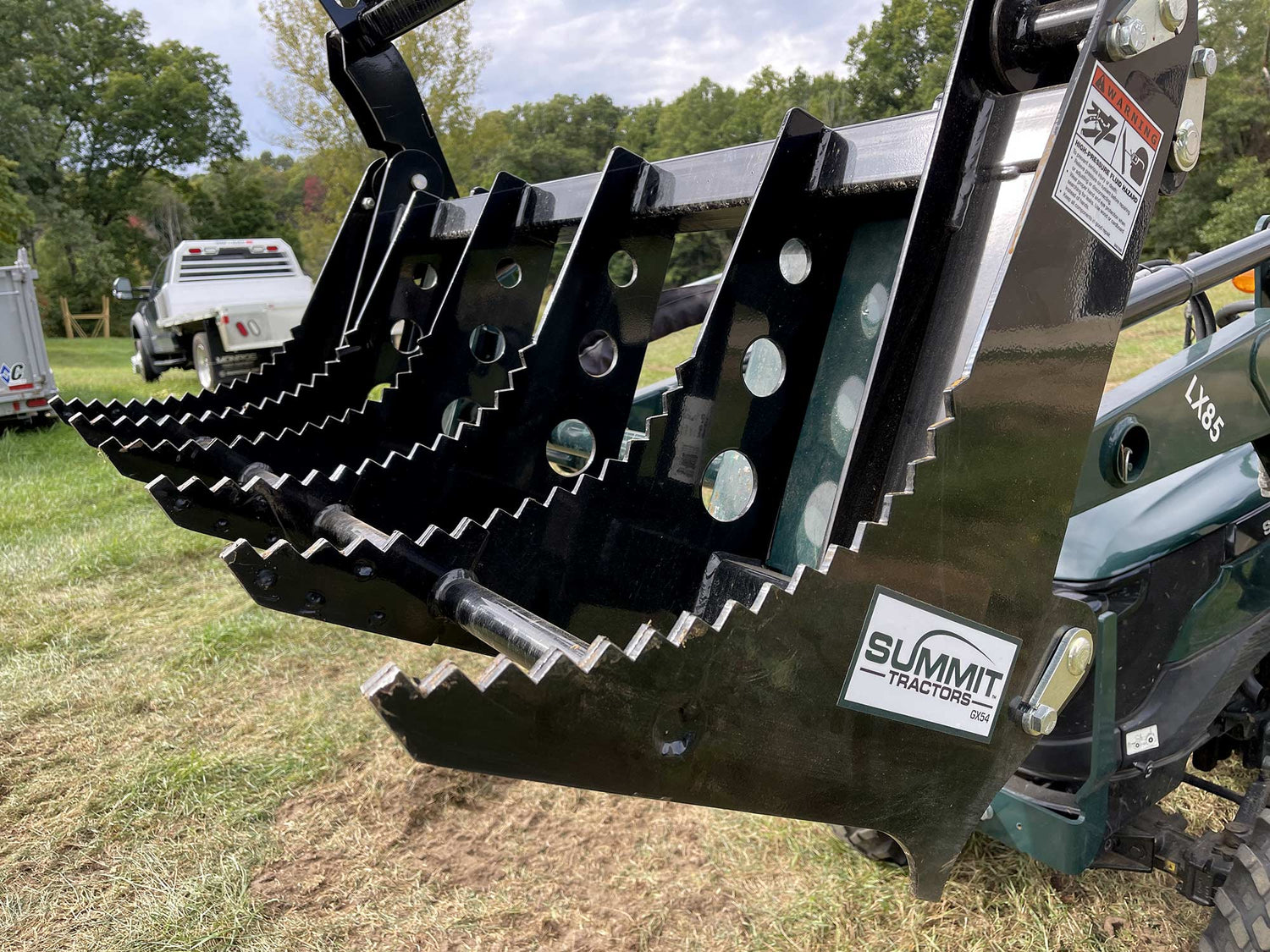

- Serrated tines

- Dual hydraulic cylinders

- Protective sleeved hoses

- Internal hose plumbing – less likely to wear

- Gusseted teeth on the grapple arm tines

- Powder coated finish

- Operating weight – 255 lbs.Width – 54” (1,372 MM)

- Ships with two female 1/2” quick couplers on the hoses, with a loose male coupler

- For compact tractors 20HP and higher – recommend rear ballast for effective and safe operation

- Requires 3rdfunction hydraulics - see tractor manufacturer for details

- Please see operator manual for complete specifications

Download the GX54 Manual:

https://summittractors.com/pdf/GX54-GRAPPLE-MANUAL.pdf

54" GRAPPLE

Overall height:  29.26"
Width: 21.27"
Length: 54"
Max Opening: 35.26"
Weight: 255 lbs
Tine Spacing: 10.50"
Material:  Heavy Duty A50 Steel
Manufacturer:  Top Dog Attachments - American Made

60" GRAPPLE

Overall height:  39.96"
Width: 25.07"
Length: 60.375"
Max Opening: 40.81"
Weight: 445 lbs
Tine Spacing: 10.50"
Material:  Heavy Duty GR50 Steel
Manufacturer:  Top Dog Attachments - American Made

Top Dog Attachments warrants products purchased from Summit Tractors by the original purchaser to be free from defects in material and workmanship for a
period of twelve (12) months from the warranty start date.

Warranty Does Not Include:

1. Transportation to servicing dealer’s business location or, at the option of the original retail purchaser, the cost of a service call.
2. Used equipment.
3. Normal maintenance service and wear items.
4. Repairs or adjustments caused by improper use; failuer to follow
recommended maintenance procedures, accidents or other casualty.
5. Liabilityof incidental or consequential damages of any type, including but not limited to lost profits or expenses of acquiring replacement equipment.
